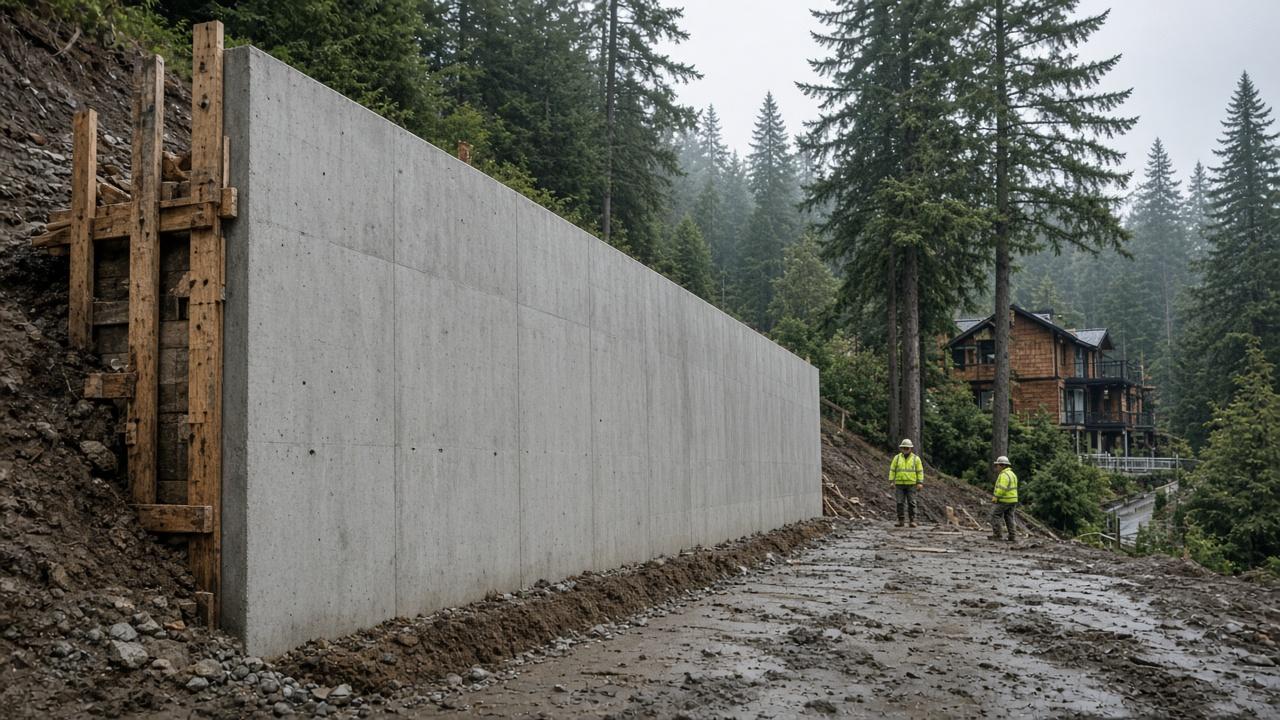

Poured concrete retaining walls are the go-to solution when you need maximum retained height, very high surcharge loads (driveways, building foundations, heavy equipment pads), or when the wall geometry is complex — curves, corners, tapered sections. In Abbotsford and the Fraser Valley, poured concrete walls are commonly specified for commercial sites, engineered residential builds, and anywhere a segmental block system would be too lightweight for the application.
A concrete retaining wall works as a gravity structure — relying on its own mass, a properly designed heel and toe footing, and in taller applications, reinforcing steel (rebar) tied into the footing to resist overturning. The wall stem sits on a footing that extends back into the retained soil (heel) and forward toward the exposed face (toe), distributing the lateral soil pressure over a wide base area.
Formwork, rebar, and concrete placement all require careful sequencing. The footing is poured first and allowed to cure; the stem forms are then set with rebar dowels that tie into the footing; the stem pour follows. In BC's climate, cold-weather concrete work requires additional care — heating, insulation blankets, and adjustments to concrete mix design to maintain adequate curing temperatures. Contact Abbotsford Retaining Wall Pros for a free assessment.
What Makes the Difference
Structural Continuity
Unlike segmental block walls that rely on friction and geogrid, poured concrete walls are monolithic — the footing and stem are structurally continuous through the rebar connection. This makes them far more resistant to differential settlement and overturning under extreme loading conditions. For walls supporting a driveway, a large structure, or a retaining application adjacent to a public road, this structural continuity is often required by an engineer.
Waterproofing and Drainage
Concrete is porous enough that hydrostatic pressure from saturated backfill will eventually cause spalling, efflorescence, and cracking if moisture is not managed. Our concrete wall builds include drainage composite (dimple mat) applied to the back face of the stem before backfilling, plus gravel drainage aggregate and a perforated drain tile at the footing. Weep holes through the stem are installed at regular intervals as an additional pressure relief.
Rebar Design for Abbotsford Conditions
Rebar sizing and spacing for concrete retaining walls is determined by wall height, soil weight, surcharge load, and seismic zone. Abbotsford sits in a moderate seismic zone — walls supporting structures should be designed by a structural engineer. We work with local engineers when projects require stamped drawings, and we build to those drawings precisely.
Board-Formed vs. Smooth Finish
Architectural concrete retaining walls can be given a board-form texture by using rough-sawn lumber as form liner, producing horizontal shadow lines that look intentional and attractive. Smooth formed concrete with carefully placed ties gives a cleaner industrial look. Both are valid finishes and we can execute either. Alternatively, concrete walls can be faced with stone veneer, stucco, or interlocking stone post-construction.
Technical Specifications
- Minimum 28 MPa concrete for retaining wall stems (32 MPa recommended for exposed walls in coastal BC climate)
- Rebar: 15M to 25M depending on wall height, typically spaced at 300–400 mm centres in both directions
- Footing thickness: minimum wall thickness plus 150 mm; heel and toe widths per engineering
- Form liner options: smooth plywood, rough-sawn cedar board form, foam texture liner
- Cure time before backfilling: minimum 7 days at temperatures above 10°C; longer for cold-weather pours
- Drainage composite: dimple mat or equivalent on retained face of stem
- Weep holes: 75 mm diameter PVC at 1.8 m centres through stem at base
- Cold-weather concrete: insulating blankets, accelerated mix, minimum 10°C concrete temperature at placement
Common Questions
Do concrete retaining walls crack?
Yes — all concrete cracks to some degree as it cures and as the ground moves seasonally. Proper rebar spacing, crack control joints at regular intervals, and adequate drainage behind the wall are the main tools to keep cracking minor and cosmetic rather than structural. Structural cracks — wide, through-wall, at the base, or accompanied by wall movement — indicate a drainage or footing problem and need professional assessment.
How long does a concrete retaining wall last?
A properly designed and drained poured concrete retaining wall in the Fraser Valley climate should last 50+ years with minimal maintenance. The concrete itself is durable; what typically limits wall life is drainage failure leading to hydrostatic pressure buildup, frost heave from inadequate drainage, or chemical attack from fertilizers and deicers. None of these are inevitable with proper drainage design.
Can you put a concrete retaining wall against my house foundation?
Retaining walls adjacent to or tying into building foundations require careful waterproofing, drainage, and structural coordination. We assess these situations case-by-case. In many cases, a drainage swale or a freestanding wall with adequate separation from the foundation is the better approach. For complex situations, we work with structural engineers.
Need a poured concrete retaining wall in Abbotsford? We assess your site, coordinate engineering if required, and build to spec. Get your free quote today.
